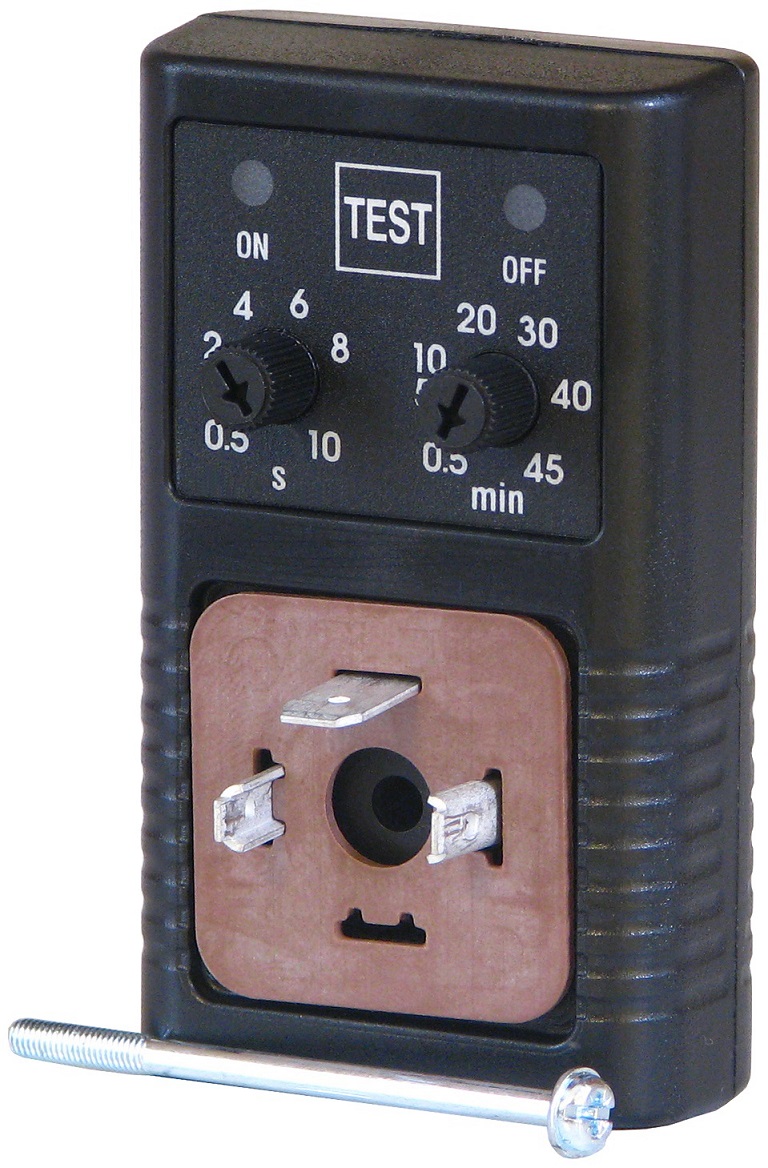

2301 JORC EZ1 G1/4 230VAC

Specifikationer

Bemerkung

Time-controlled condensate drain

Ambient temperature

+1°C to +55°C

Valve seal

FPM

Test function

Yes

Clock generator

PCB/SMD technology ensures consistency of production

Inlet height [mm]

10

Nominal voltage

230 VAC

Outlet connection

1/4" (BSP or NPT)

Plug connection

DIN 43650-A

Maintainable valve

Yes

Protection class

IP65 (NEMA4)

System pressure

0 to 16 bar

Max. compressor capacity

Unlimited

Medium temperature

+1°C to +55°C

Inlet connection

1/4" (BSP or NPT)

Zeitzyklus (On/Off)

0.5 - 10 sec (On) / 0.5 - 45 min (Off)

Cycle display Clock generator

LED, bright yellow

Gehäuse - Werkstoff

ABS plastic FR class

Ventil Nennweite

4 mm

Valve type

2/2 way, directly controlled

Valve housing material

Brass (stainless steel available, see FLUIDRAIN)

Weight [kg]

0,508
