JORC

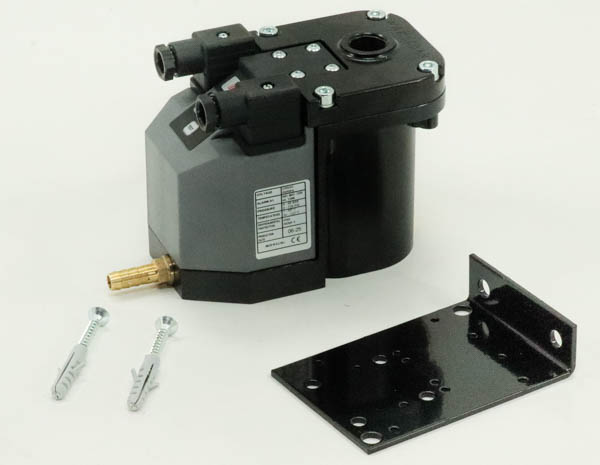

3403 H1 JORC KAPTIV-CS-HP-50 G1/2 1.8 230 VAC 50 BAR
12 173,13
SEK
Beställningsvara
Kategorier:
Condensate drain
Manufacturer: JORC
Specifikationer
- Supply voltage
- 230 VAC
- Max. compressor capacity
- 100 m³/min. (3500 CFM)
- Protection class
- IP 65 (NEMA4)
- Inlet height [mm]
- 110 (top) and 75 & 15 (side)
- Outlet connection
- 1/4" BSP, with hose connection Brass adapter
- Test function
- Yes
- Medium temperature
- +1°C to +50°C
- Alarm
- optical, LED indicators
- Plug type (power and alarm)
- DIN 43650-B
- Max. compressor capacity
- 120 litres of condensate per hour at 50 bar
- Bemerkung
- Level-controlled steam trap up to 50 bar
- Weight [kg]
- 2,05
- System pressure
- 0 to 50 bar
- Valve opening [mm]
- 1,8
- Ambient temperature
- +1°C to +50°C
- Inlet connection
- 1/2" BSP or NPT, 3 inlet options
- Valve type
- 2/2-way, direct controlled
- Gehäuse - Werkstoff
- Corrosion-resistant aluminium, EP coating
