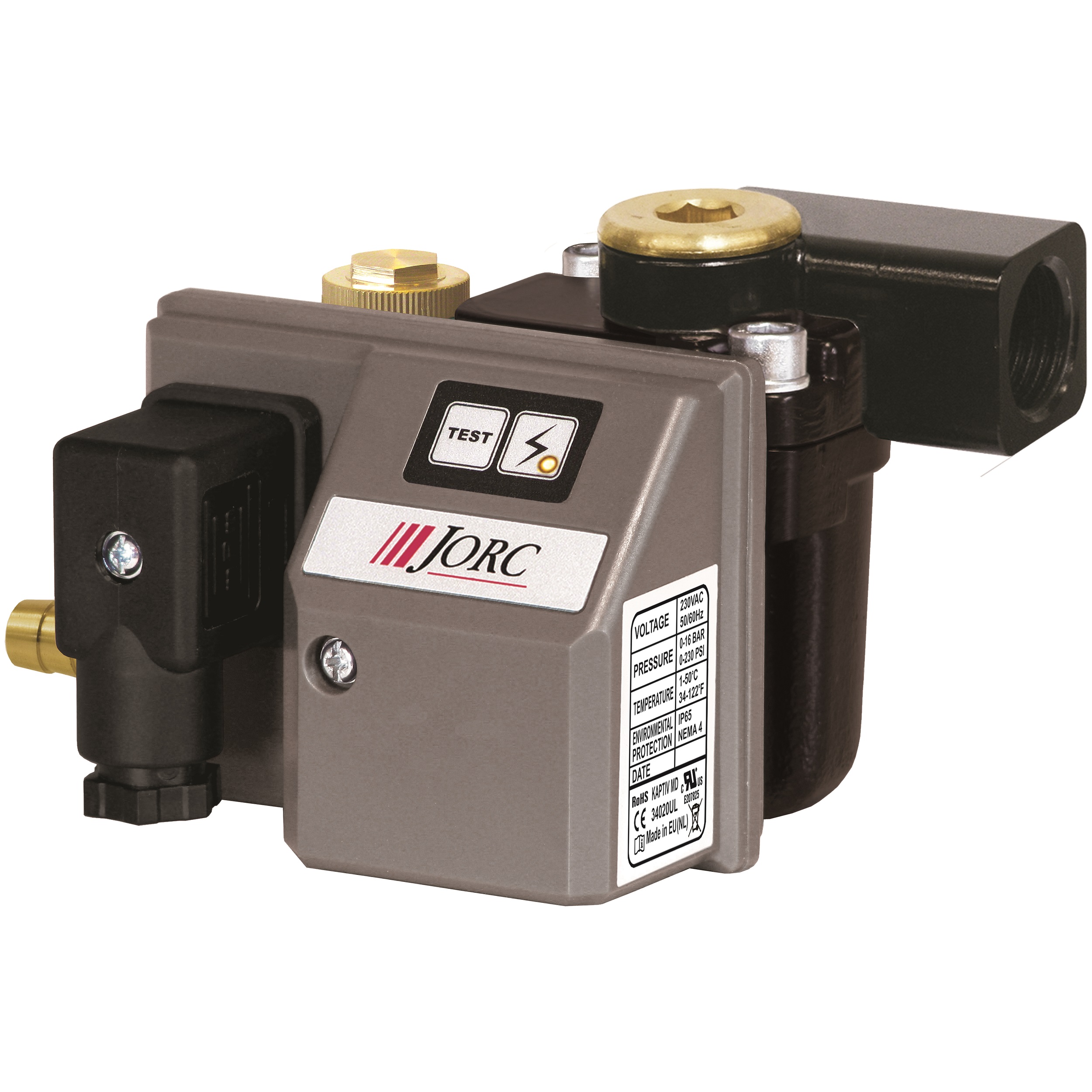

3421 A1 JORC KAPTIV-MD-A1-MULTI G1/2 2 V 115VAC Drain

Specifikationer

Valve seal

FPM

Test function

Yes

Maintainable valve

Yes

System pressure

0 to 16 bar

Inlet connection

1/2" (BSP oder NPT)

Protection class

IP65 (NEMA4)

Medium temperature

+1°C to +50°C

Plug type (power and alarm)

DIN 43650-B

Valve opening [mm]

2

Bemerkung

Level-controlled condensate drain

Ambient temperature

+1°C to +50°C

Alarm

Visual, LED display (current) on the steam trap

Gehäuse - Werkstoff

Corrosion-resistant aluminium, EP coating

Side inlet adapter

Yes, optional

Inlet height [mm]

74

Bemerkung

with alarm

Max. capacity A3/A4 version

45 litres of condensate per hour at 16 bar (230 psi)

Max. compressor capacity

10 m³/min.

Outlet connection

1/4" BSP, with hose connection Brass adapter

Supply voltage

115 VAC

Valve type

2/2 Ways, Direct Acting
