JORC

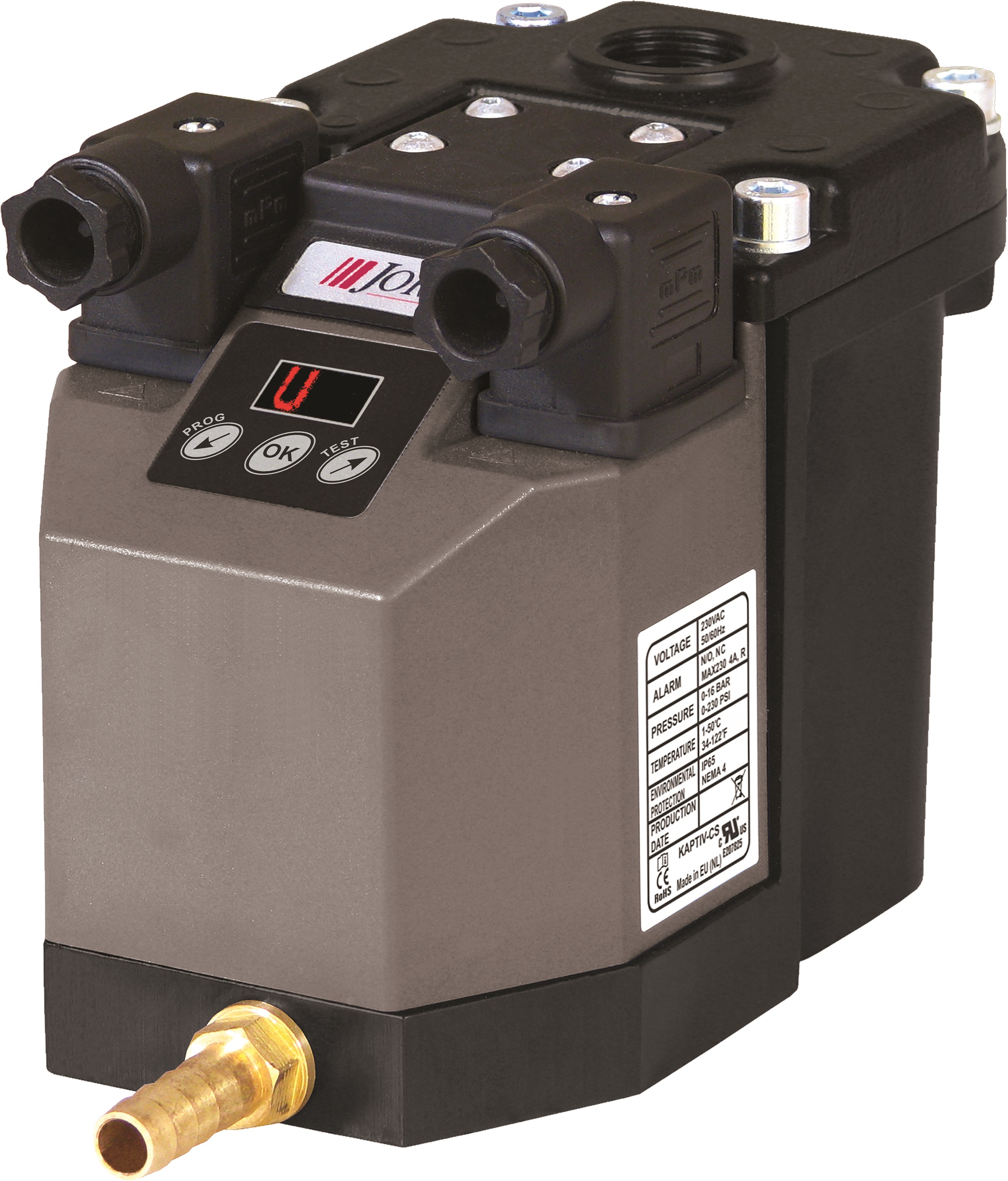

3423 WA JORC KAPTIV-CS-DLUX G1/2 4 V 115VAC Drain
5 161,34
SEK
Beställningsvara
Kategorier:
Condensate drain
Manufacturer: JORC
Specifikationer
- Valve seal
- FPM
- Test function
- Yes
- Maintainable valve
- Yes
- System pressure
- 0 to 16 bar
- Supply voltage
- 115 VAC
- Valve opening [mm]
- 4
- Protection class
- IP65 (NEMA4)
- Medium temperature
- +1°C to +50°C
- Plug type (power and alarm)
- DIN 43650-B
- Bemerkung
- Level-controlled condensate drain
- Ambient temperature
- +1°C to +50°C
- Alarm
- Visual, LED indication
- Valve type
- 2/2-way, direct controlled
- Gehäuse - Werkstoff
- Corrosion-resistant aluminium, EP coating
- Integrated stainless steel strainer
- Yes
- Max. compressor capacity
- 100 m³/min. (3500 CFM)
- Inlet connection
- 1/2 (BSP or NPT), 3 inlet options
- Max. compressor capacity
- 665 litres of condensate per hour at 16 bar
- Outlet connection
- 1/4 BSP, with hose connector Brass adapter
- Inlet height [mm]
- 11 (top) and 7.5 & 1.5 (side)
- Weight [kg]
- 1,756
