JORC

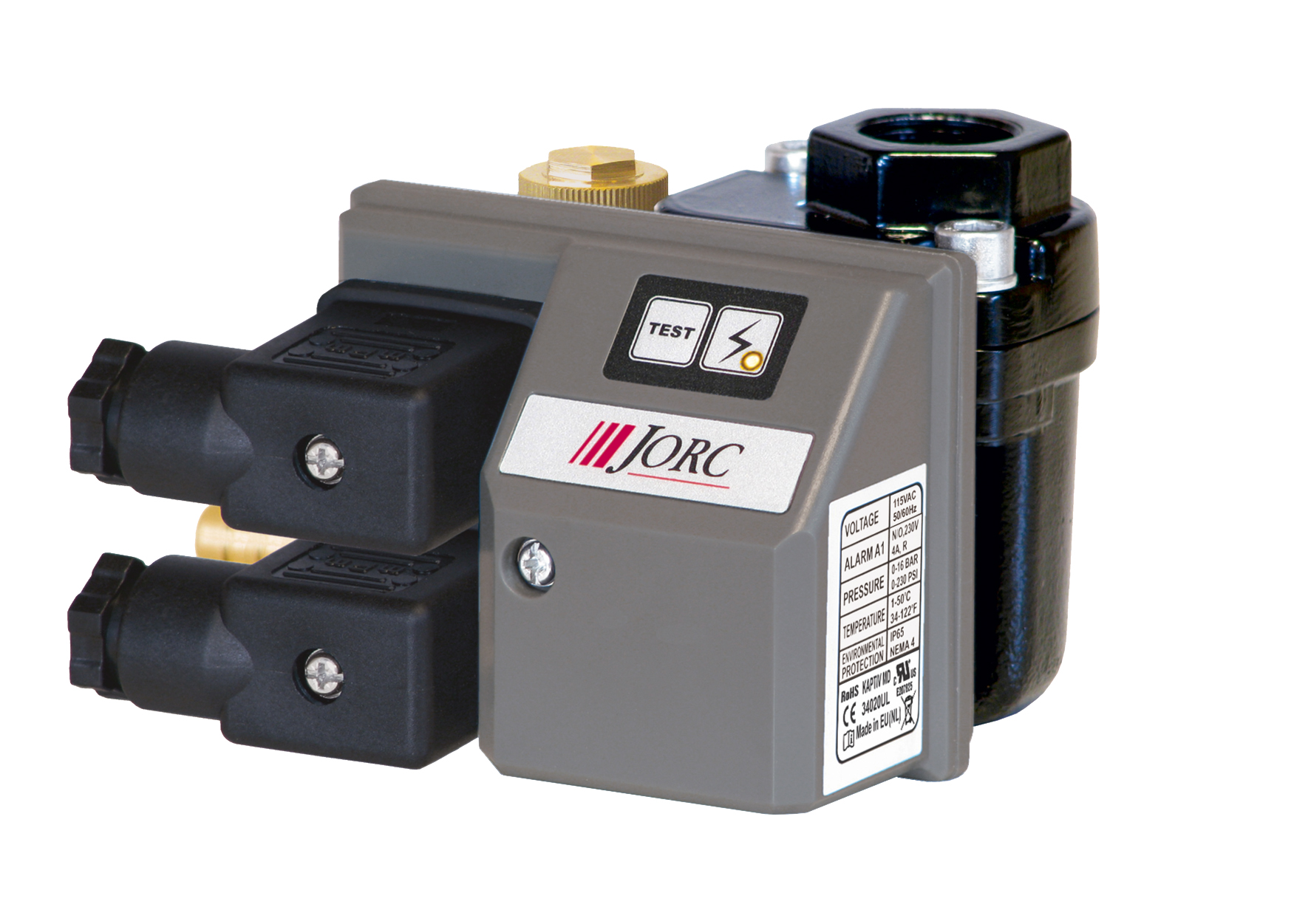

3462 A2 JORC KAPTIV-MD-AL G1/2 4.5 24VAC 16BAR (NC)
3 060,41
SEK
Beställningsvara
Kategorier:
Condensate drain
Manufacturer: JORC
Specifikationer
- Test function
- Yes
- Maintainable valve
- Yes
- System pressure
- 0 to 16 bar
- Protection class
- IP65 (NEMA4)
- Supply voltage
- 24 VAC
- Max. compressor capacity
- 10 m³/min. (350 CFM)
- Outlet connection
- 1/4" BSP, with hose connection Brass adapter
- Medium temperature
- +1°C to +50°C
- Plug type (power and alarm)
- DIN 43650-B
- Valve opening [mm]
- 2
- Ambient temperature
- +1°C to +50°C
- Valve type
- 2/2-way, direct controlled
- Gehäuse - Werkstoff
- Corrosion-resistant aluminium, EP coating
- Inlet height [mm]
- 74
- Inlet connection
- 1/2" BSP oder NPT
- Bemerkung
- with alarm
- Bemerkung
- Electronic condensate drain
- Alarm
- Optical, LED indication - closed contact
- Max. compressor capacity
- 45 litres of condensate per hour at 16 bar
- Integrated stainless steel strainer
- Yes
- Side inlet adapter
- Yes, optional
