JORC

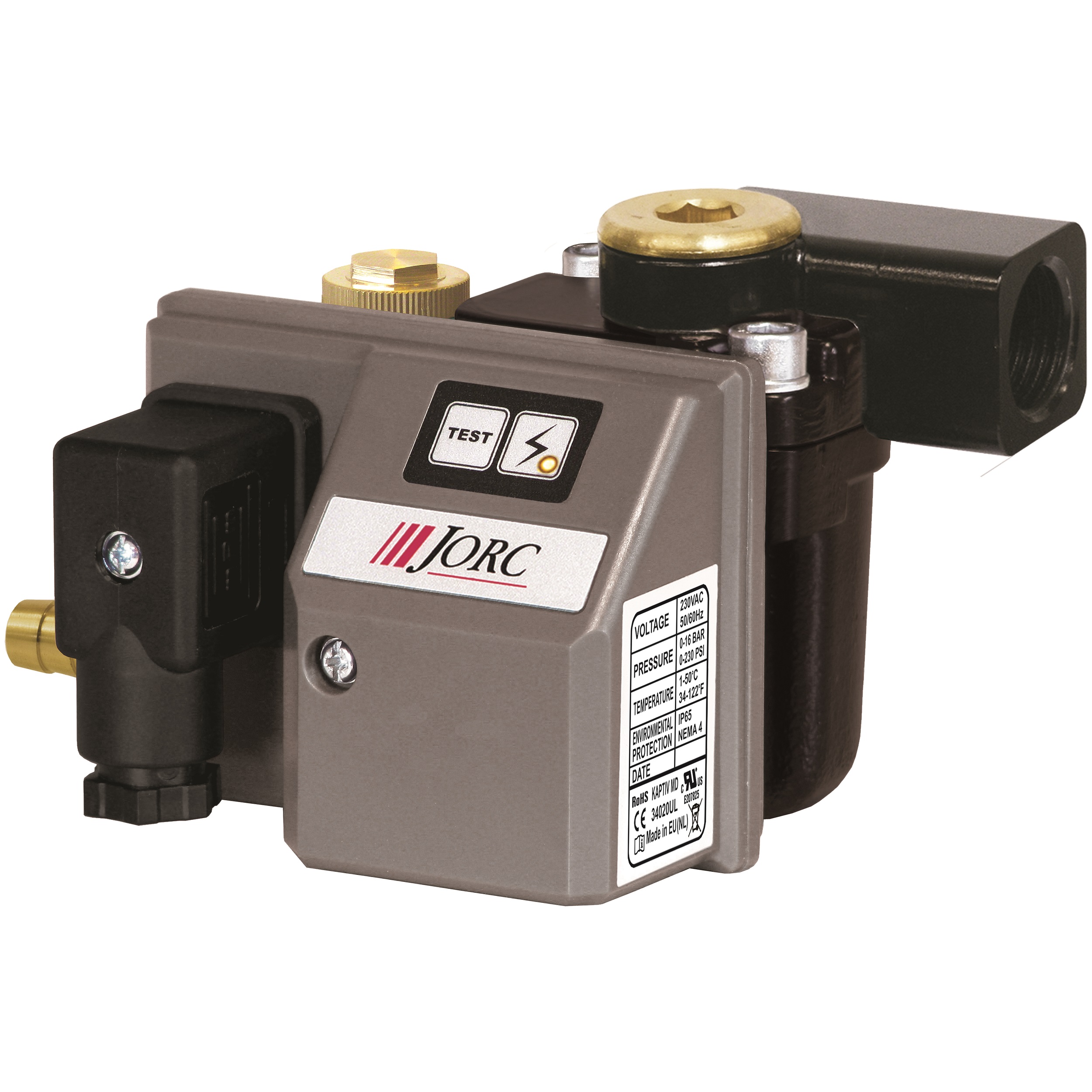

3481 A1 JORC KAPTIV-MD-A1-MULTI G1/2 2 V 24VDC Drain
3 160,39
SEK
Beställningsvara
Kategorier:
Condensate drain
Manufacturer: JORC
Specifikationer
- Valve seal
- FPM
- Test function
- Yes
- Maintainable valve
- Yes
- System pressure
- 0 to 16 bar
- Inlet connection
- 1/2" (BSP oder NPT)
- Protection class
- IP65 (NEMA4)
- Supply voltage
- 24 VDC
- Max. capacity A3/A4 version
- 45 litres of condensate per hour at 16 bar
- Outlet connection
- 1/4" BSP, with hose connection Brass adapter
- Medium temperature
- +1°C to +50°C
- Plug type (power and alarm)
- DIN 43650-B
- Valve opening [mm]
- 2
- Bemerkung
- Level-controlled condensate drain
- Ambient temperature
- +1°C to +50°C
- Valve type
- 2/2-way, direct controlled
- Gehäuse - Werkstoff
- Corrosion-resistant aluminium, EP coating

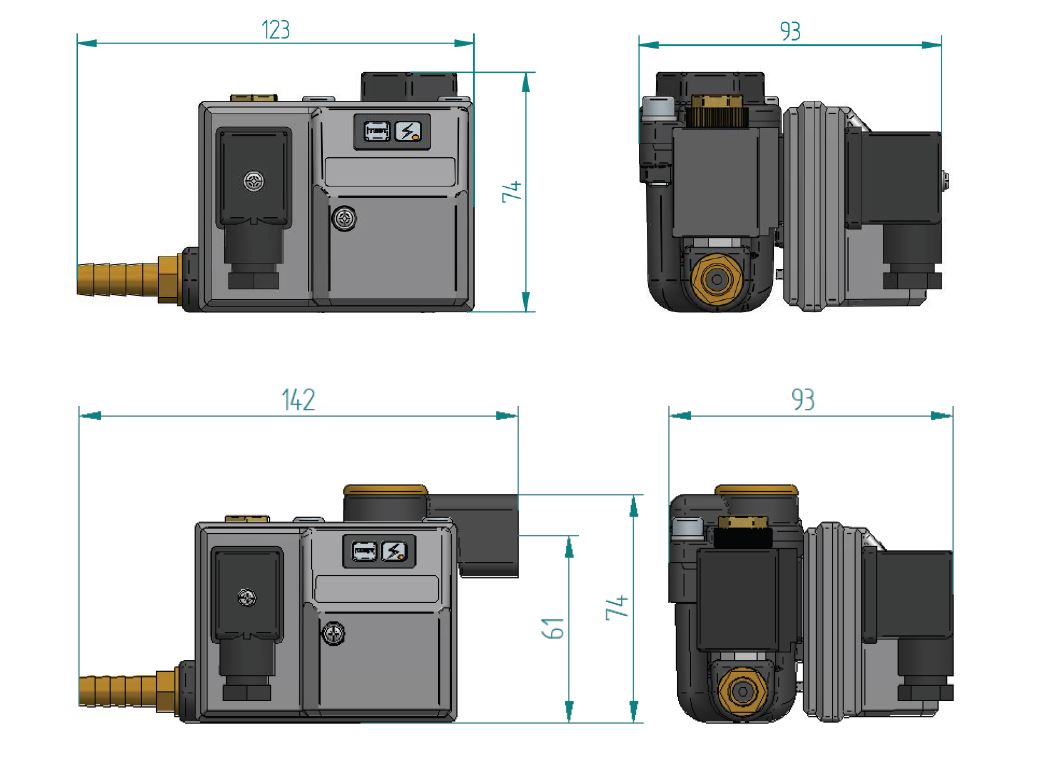

- Inlet height [mm]
- 74
- Bemerkung
- with alarm
- Integrated stainless steel strainer
- Yes
- Side inlet adapter
- Yes, optional
- Alarm
- Visual, LED display (current) on the steam trap
- Max. compressor capacity
- 10 m³/min.
