JORC

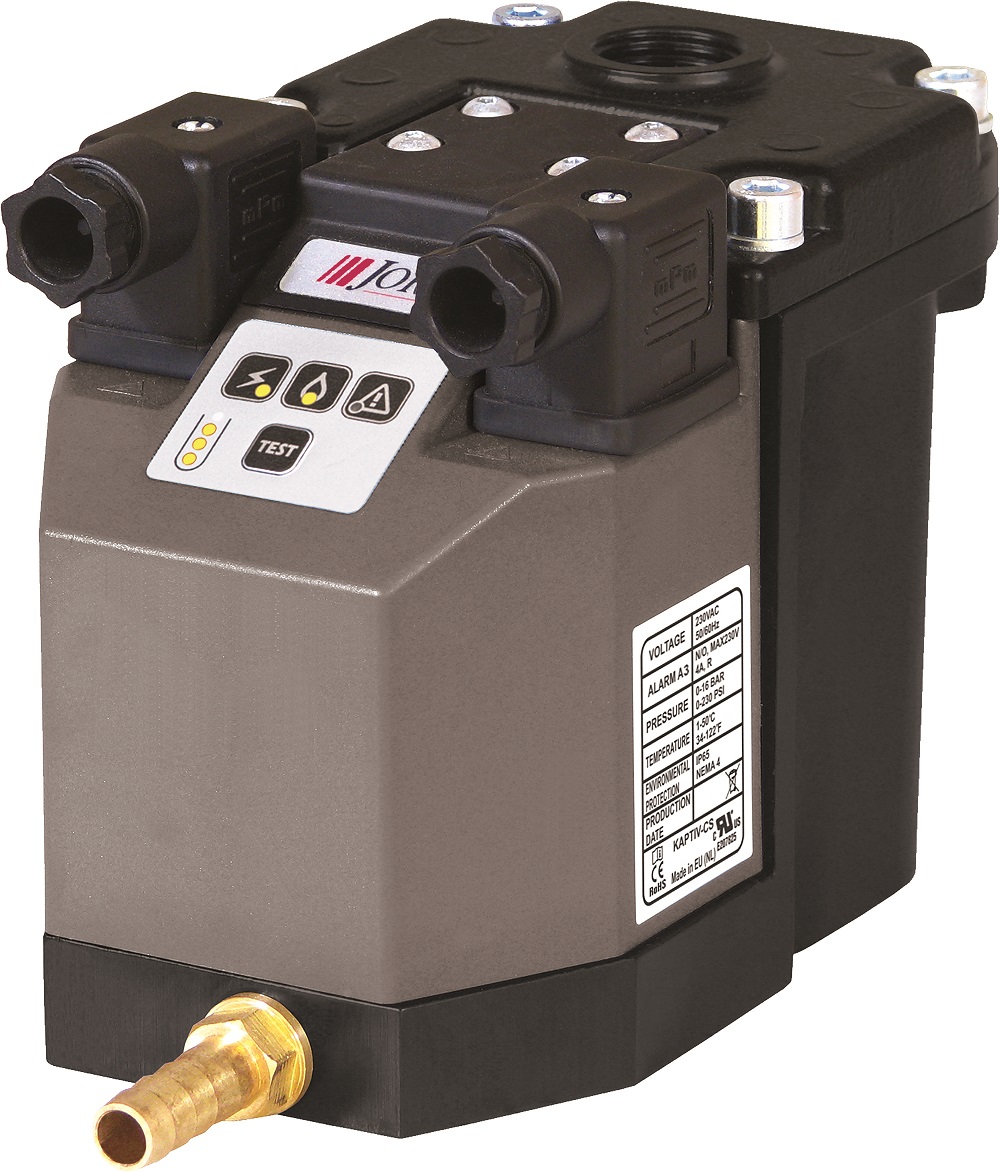

3483 A3 JORC KAPTIV-CS G1/2 4.5 115VAC 16BAR (NO)
4 651,52
SEK
Beställningsvara
Kategorier:
Condensate drain
Manufacturer: JORC
Specifikationer
- Valve seal
- FPM
- Test function
- Yes
- Maintainable valve
- Yes
- System pressure
- 0 to 16 bar
- Supply voltage
- 115 VAC
- Valve opening [mm]
- 4
- Protection class
- IP65 (NEMA4)
- Outlet connection
- 1/4" BSP, with hose connection Brass adapter
- Plug type (power and alarm)
- DIN 43650-B
- Bemerkung
- Level-controlled condensate drain
- Valve type
- 2/2-way, direct controlled
- Gehäuse - Werkstoff
- Corrosion-resistant aluminium, EP coating
- Integrated stainless steel strainer
- Yes
- Max. compressor capacity
- 100 m³/min. (3500 CFM)
- Inlet height [mm]
- 11 cm (top) and 7.5 & 1.5 cm (side)
- Ambient temperature
- +1°C to +50 °C
- Medium temperature
- +1°C to +50 °C
- Inlet connection
- 1/2" BSP or NPT, 3 inlet options
- Max. capacity A3/A4 version
- 665 litres of condensate per hour at 16 bar
- Alarm
- Visual, LED indication – open contact
